Toshiba B-EX4T1
TS-BEX4T1-R
Toshiba B-EX4T1
Industrial
UHF
Near Edge

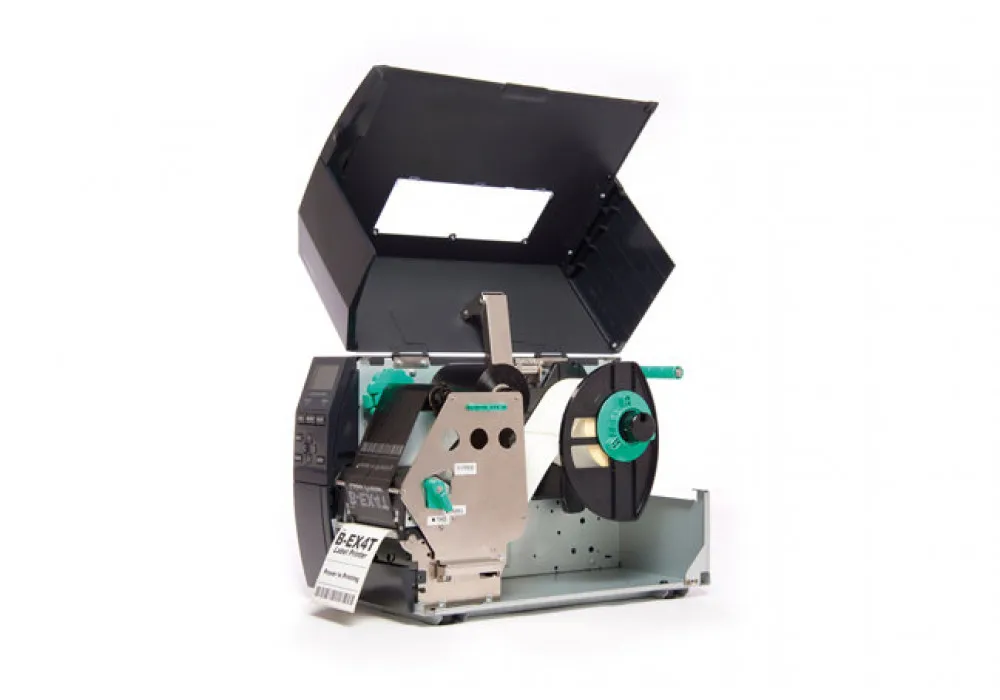

Toshiba B-EX4T1 RFID – 4" industrial printer with Near Edge technology for maximum speed and up to 75% ribbon savings. Speed up to 14 ips (355 mm/s), resolution 203/305 dpi. UHF EPC Class 1 Gen2 (ISO18000-6C) encoding. SPRiNT technology for short-pitch encoding (15 mm label repeat). Optional automatic Ribbon Save module: reduces ribbon consumption by up to 75%. Dimensions 278×460×310 mm, weight 17 kg. Ideal for manufacturing, automotive, pharmaceutical, textile and high-speed production.
Technical specifications
Print type
TT / DT
Resolution
203 / 305 dpi
Maximum speed
14.00 ips (355.00 mm/s)
Print width
104.00 mm (min 15.00 mm)
Max ribbon width
110.00 mm
Print head type
Near Edge
RFID standard
UHF EPC Class 1 Gen2 (ISO18000-6C)
Frequency RFID
860-960 MHz
Display
LCD
Weight
17.00 kg
Operating temperature
5 / +40 °C
Interfaces
USB, LAN Ethernet, Seriale (Wi-Fi opzionale)
Additional specifications
Near Edge: testina con lunga vita operativa, meno manutenzione. Ribbon Save opzionale: riduce consumo nastro fino a 75%. SPRiNT: codifica short-pitch, etichette con repeat da 15 mm. Lunghezza stampa max: 1498 mm. Dimensioni: 278×460×310 mm.
